The Original Truly Flat Hydraulic Wrench · Since 1996
Tight clearances shouldn't meancompromised torque.

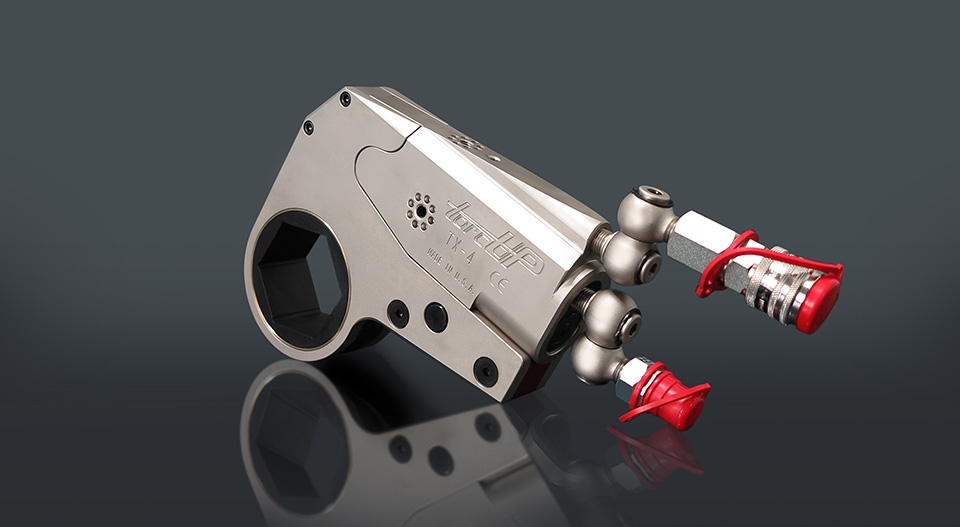

The TX Series Low-Profile Hydraulic Wrench fits where square drives can't. Deliver up to 47,380 ft-lbs of ±3% accurate torque on blowout preventers, wellheads, and pipeline flanges.

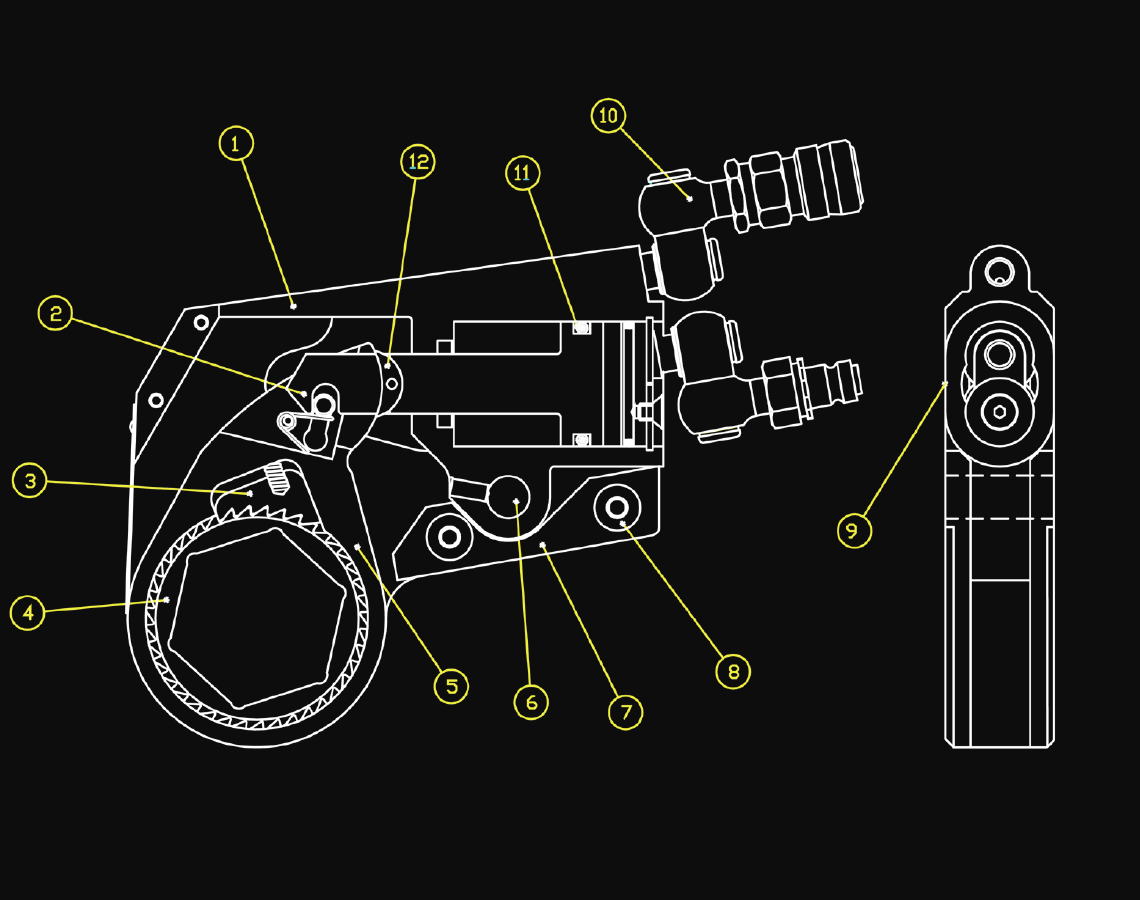

The Power Inside
Patented peanut piston. 20 years field-proven.
The TX Series is built around a patented "peanut-shaped" cylinder driving a multi-tooth ratchet through a never-lock drive pawl — engineered to deliver full torque flat-out where square-drive wrenches can't fit.
- 100%DUTY CYCLE
- 360°×360°SWIVEL
- 20yrFIELD-PROVEN
- 01Patented “peanut-shaped” cylinder
- 02Engagement rod
- 03Never-lock drive pawl
- 04Multi-tooth ratchet
- 05One-piece drive plate
- 06Link pin
- 07In-line reaction pad
- 08Steel alignment pin
- 09Completely flat design
- 10360° × 360° swivel
- 11Proprietary piston seal
- 12Slider prevents wear of piston
SOURCE · TORCUP TX SERIES CATALOG

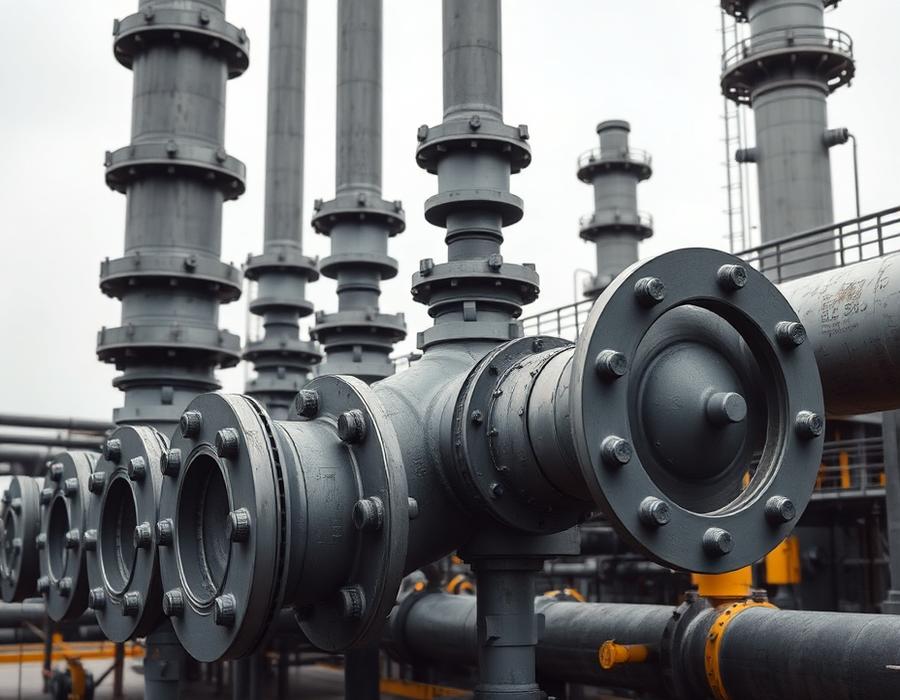

Where it works
Engineered for the world's
hardest joints.

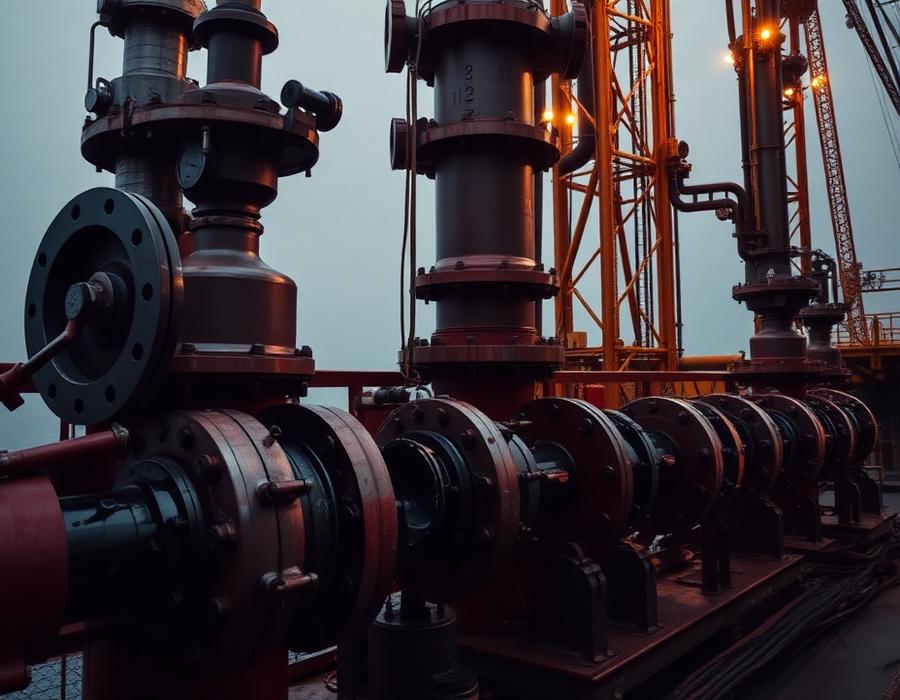

Built for API, ASME PCC-1, and ATEX environments. Deployed across upstream, midstream, and heavy industrial maintenance.
Also deployed across
HOVER TO PAUSE
Field Proof · One World Trade Center
Trusted at 1,776 ft.
And every depth below.
From the spire of One World Trade Center to subsea wellheads, TorcUP TX tools are specified by the crews who can't afford a callback.
Verified statements
From TorcUP and its
authorized distributors.
"The flattest and most tight-fitting hydraulic bolting tool in the industry. The go-to wrench when standard tools won't fit."
"The most sturdy, advanced and easy-to-handle low profile hydraulic torque wrench that has ever been manufactured."
"Engineered for precision and durability in heavy industries like oil & gas, manufacturing, and mining — reliable, accurate torque control in the most challenging environments."
Seen in the field
Manufacturer footage & live posts.
Tool walk-throughs, application demos and torque procedure footage published by TorcUP Inc.
“TorcUP hydraulic torque wrenches delivering reliable bolting performance on critical infrastructure projects.”
The Series
TX vs TXU. Pick your envelope.
The standard flat profile.
Dual independent swivels at the rear. The proven low-profile workhorse for the broadest range of bolting jobs.
- Dual rear swivels
- Widest torque range
- Standard hex link compatible

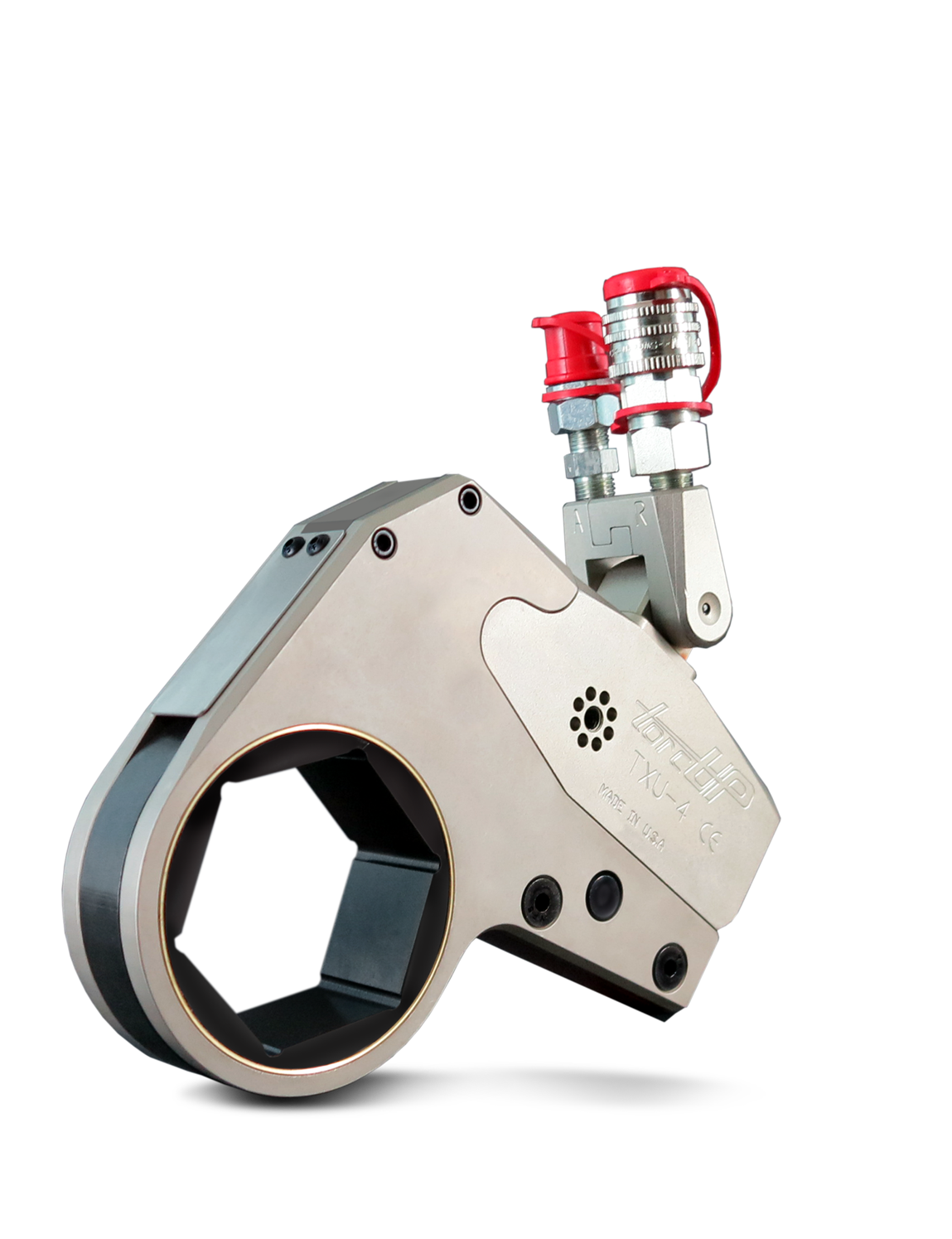

Ultra-tight clearance solution.
Hoses exit the top via a 360°×180° Uni-Swivel, shortening the overall tool length for the most restricted envelopes.
- Top-mounted Uni-Swivel
- Shortest overall length
- For restricted access

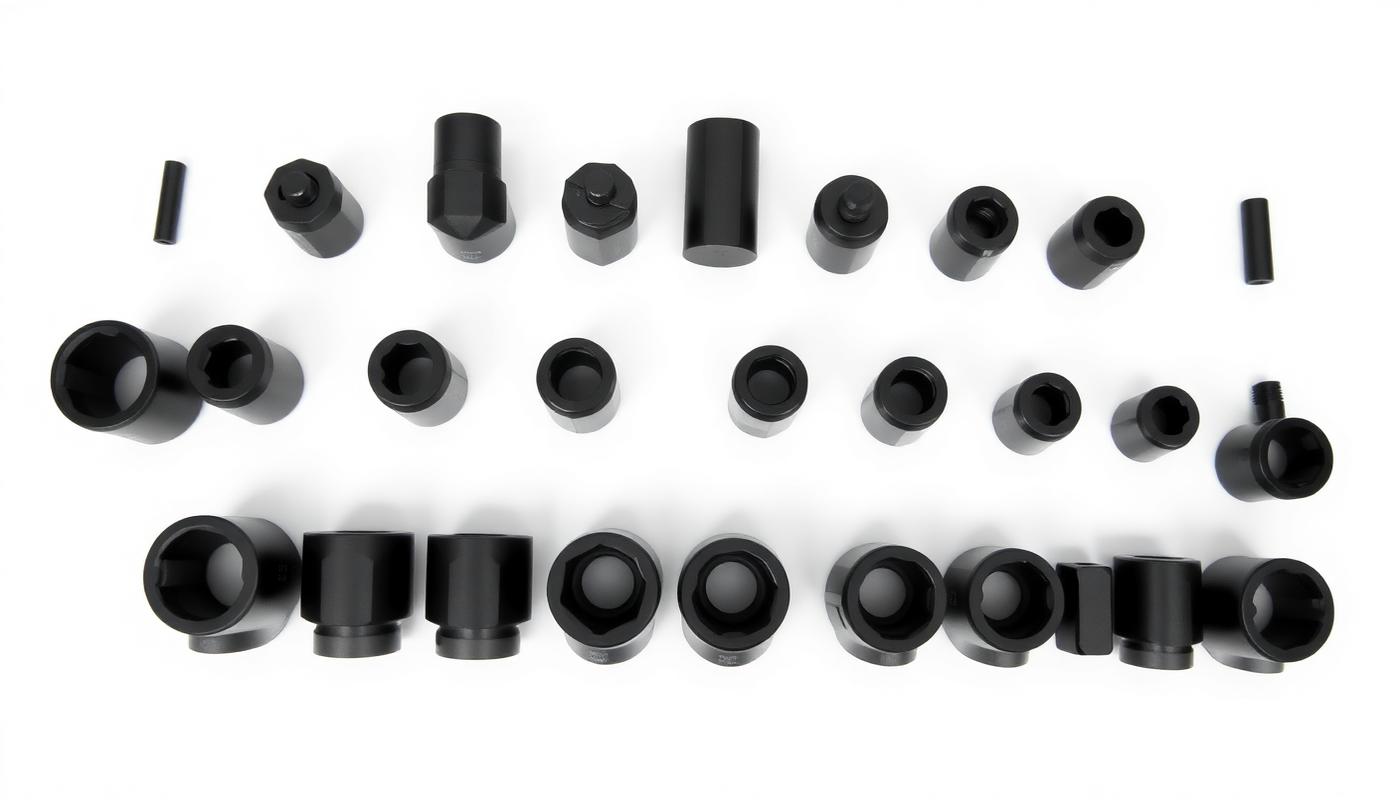

Interchangeable hex links
One drive cylinder.
Every nut size.
Swap hex links in seconds with a single pin. No special tools required. From 3/4" to 6-1/8" AF (Across Flats), buy one drive cylinder and only add the links you need for the job.
- Smallest AF
- 3/4″
- Largest AF
- 6-1/8″
- Swap time
- < 10s
Head to head
What the spec sheet
won't tell you.
24-Hour Engineering Response
Talk to a TorcUP engineer.
Don't know your torque value or nut size yet? That's fine — share the application and a factory engineer will size the right TX tool for you and reply with a configured quote in 24 hours.
Image Source Verification
Every TX diagram is sourced from official TorcUP assets.
No autogenerated imagery. Each TX internal diagram below links to the public TorcUP catalog page or CDN asset it was imported from.
